- Casting made of high FC-30 high quality for extra rigidity.
- Spindle of SCM-21 alloy steel & precision ground, with class P4 bearings to ensure best accuracy on high speed running.

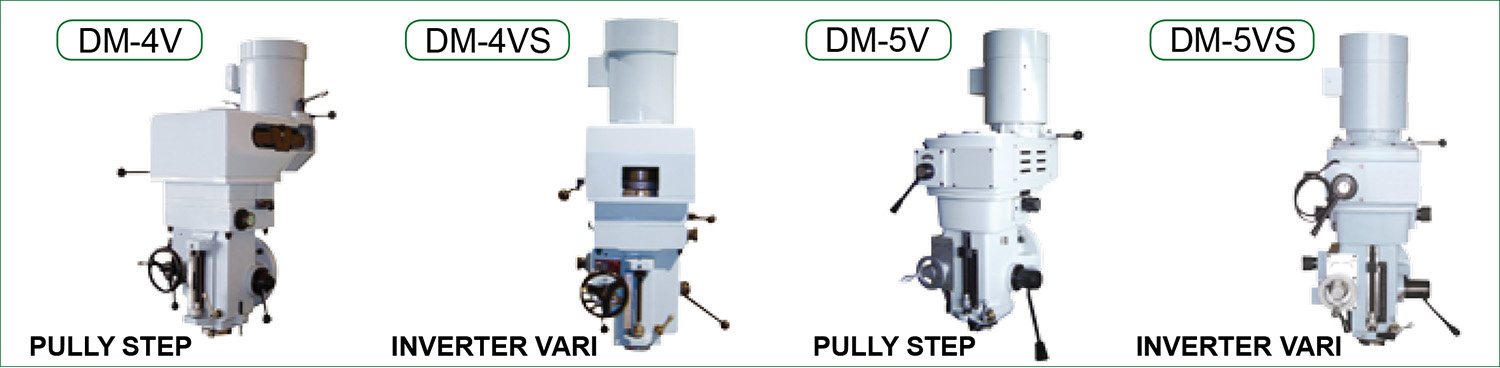

* Spindle motor of DM-5VS with AC 5HP magnetic brake, it may stop - running at the twinkling.
- Milling head with balance weight for smooth elevating movement.
- Bed & column as box type, long square sliding ways, & wider base for turning stability.
- Square slide way have been ultra-frequency treated & precision ground, XYZ-axes with Turcite-B.
- XYZ-axes with ball screw to smooth in precision cutting.
- XYZ-axes with brake motor rapid feeding, controlled by inverter, for automatic & vari speed with high accuracy position.
- All sliding way with automatic lubrication.
SPECIFICATION Unit: mm / inch
- Spindle micrometric feed
- X,Y,Z-axes variable feed
- X,Y,Z-axes ball screw
- X,Y,Z-axes auto lubrication system
- X,Y,Z-axes with Turcite-B
- Z-axis rapid traverse
- Z-axis brake motor
- Coolant system
- Draw bar
- Rear rubber dust guard
- Front telescopic cover
- Electric control box & panel
- Halogen light
- Tools & tool box
- Operation manual
- Digital speed display (only for DM-4VS,5VS)
- Splash guard
- Air draw bar
- Digital readers
- Pneumatic locks on Z-axis
