Large spindle boreφ70mm (2.76") in all same type lathe,high hardness, for best heavy duty cutting.
★ 2 stage feeding device tailstock with patent design on gear tightening type for turning stability.
產品介紹
FEATURES : (for LV, LA, LG)
- One piece Meehamite casting machine base.
- Metric & inch gear box with full range of inch, metric, DP, MP threading and multiple threads, all function is
- reached without change gear.
- Apron enforced oil supply with safety device is used to avoid collision.
- Bed ways & surface of compound rest have been ultra-frequency heat treated& ground to provide a longer life.
- Cross way feeding guides screw: 2points support for heavy cutting.
- Length safety foot brake.
- Dynamically balanced alloy spindle is adopted 3 points of bearing support.
- The gears in headstock and spindle are hardened & precision ground.
STANDARD ACCESSORIES
1. XZ-axes auto. lubrication system
2. Metric / inch gear box
3. Coolant device
4. Longitudinal apron motion feed
5-1. Tailstock (for LV / LA)
5-2. Tailstock two steps device (for LG)
2. Metric / inch gear box
3. Coolant device
4. Longitudinal apron motion feed
5-1. Tailstock (for LV / LA)
5-2. Tailstock two steps device (for LG)

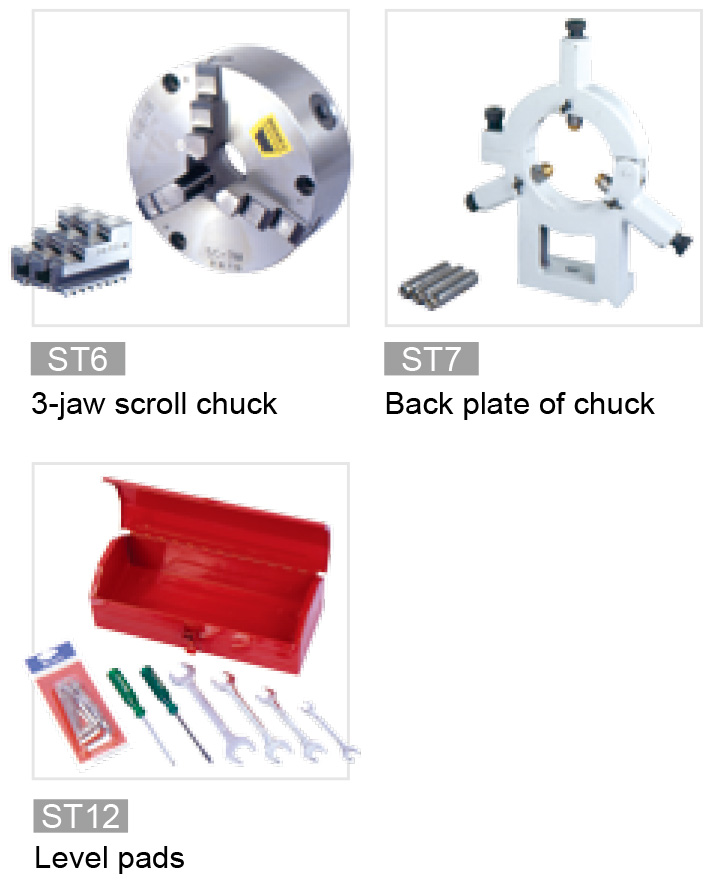

6-1. 3-jaw scroll chuck 7" (for LV / LA)
6-1. 3-jaw scroll chuck 9" (for LG)
6-1. 3-jaw scroll chuck 9" (for LG)
7. Back plate of chuck
8. Steady rest 6" 14. Operation manual
9. Center sleeve
10. Dead center
8. Steady rest 6" 14. Operation manual
9. Center sleeve
10. Dead center
11. Tool post screw wrench
12. Level pads
13. Tools & tool box
12. Level pads
13. Tools & tool box

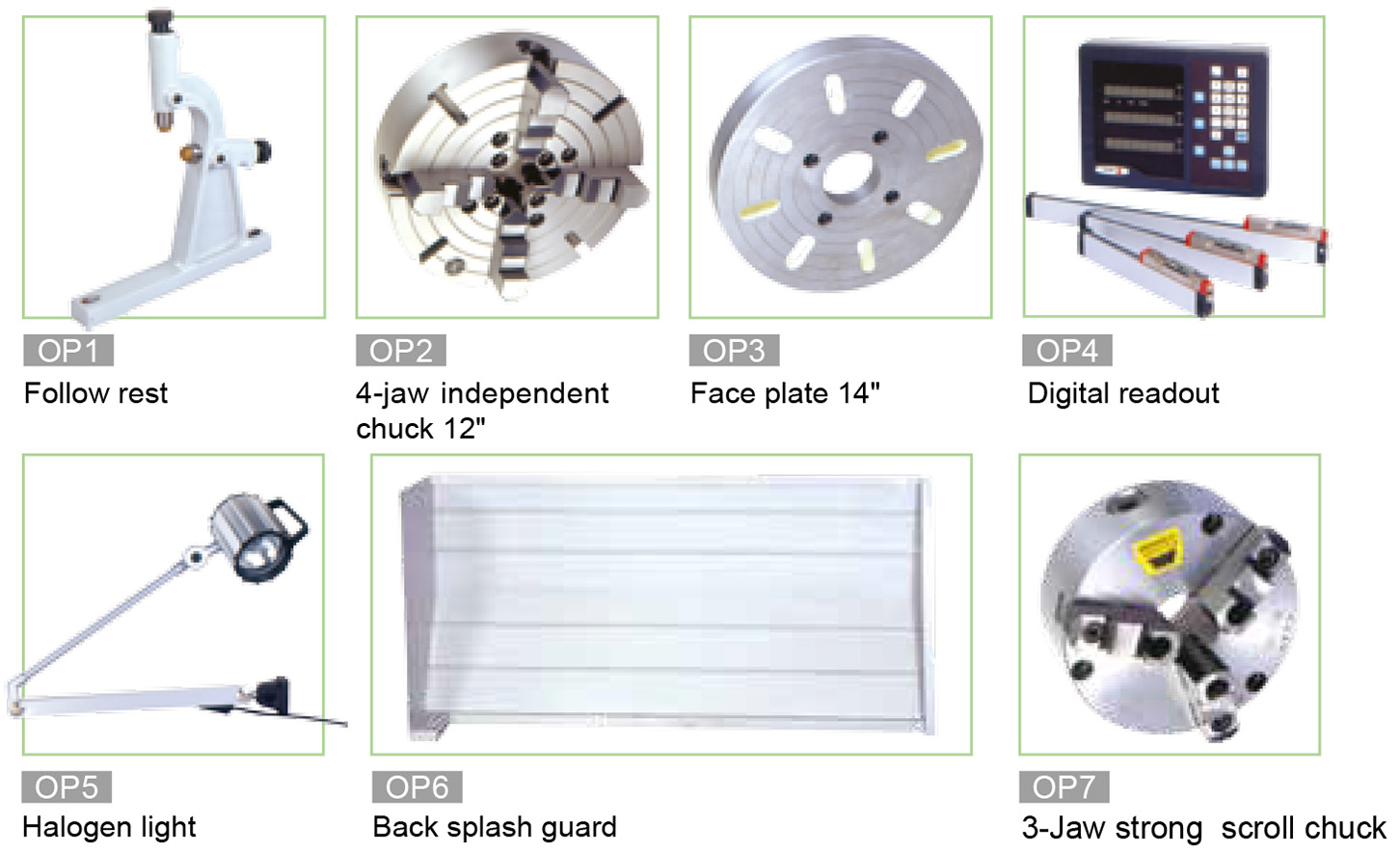

OPTIONAL ACCESSORIES
- Follow rest
- 4-jaw independent chuck 12"
- Face plate 14"
- Digital readout
- Halogen light
- Back splash guard
- 3-Jaw strong scroll chuck(instead of 3-jaw scroll chuck)
- Quick change tool post (instead of tool post )
- CE equipment
- Taper turning attachment
- Grinder
- Hydraulic copy attachment
SPECIFICATION
★We reserve the right to modify and improve our products without notice.
