SPINDLE BORE ø152 ; ø230 ; ø255; ø305; ø380mm HL & HK Series
HL Series WIDTH OF BED 24" (610mm)
HL-960/1120/1220~1620 x1500;2000;3000;4000;5000;6000;7000;8000
HK Series WIDTH OF BED 32" (810mm)
HK-960/1120/1220~2000 x2000;3000;4000;5000;6000;7000;8000
產品介紹
精密重切削車床 HL&HK Series
SPINDLE BORE : 6” , 9”, 10" , 12”, 15”
Spindle bore:9",10",12",15" only fit to swing over bed over 1120mm.
BED WIDTH : 24” ( HL series) / 32” ( HK series)
BED WIDTH : 24” ( HL series) / 32” ( HK series)
- Swing over bed above 1220～1620 / 2000 mm is available to be customized on request.
- Distance between centers above 8 meter is available to be customized on request.
FEATURES :
It is suitable for turning and cutting of large work piece and steel rod materials for heavy industries like oil pipe network, aerospace and heavy-duty shaft processing.

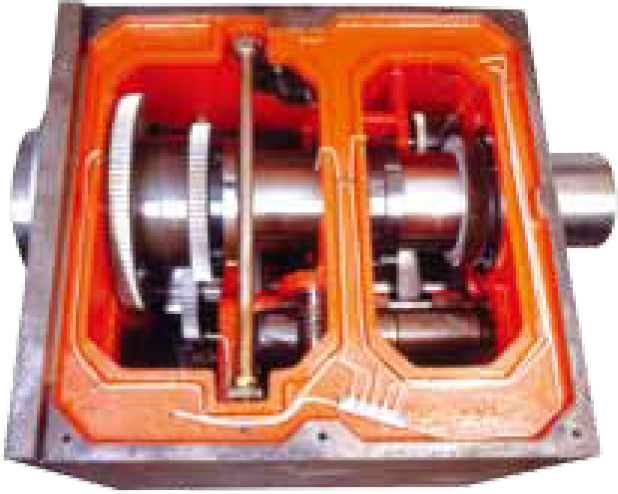

Spindle & headstock
- Bore 6”,9”,10",12”,15", turbine speed change mechanism with on easy speed jumping and three-point support for the box.
- Fitted with adjustable, electromagnetic brake for easy braking adjustment according to different work piece materials and speed.
- Gear and shaft are made of super alloy material with bearings to offer durable cutting and low production noise.
- Sealed oil bath lubrication system with enforced oil supply by mechanical pump to achieve better lubrication effects.

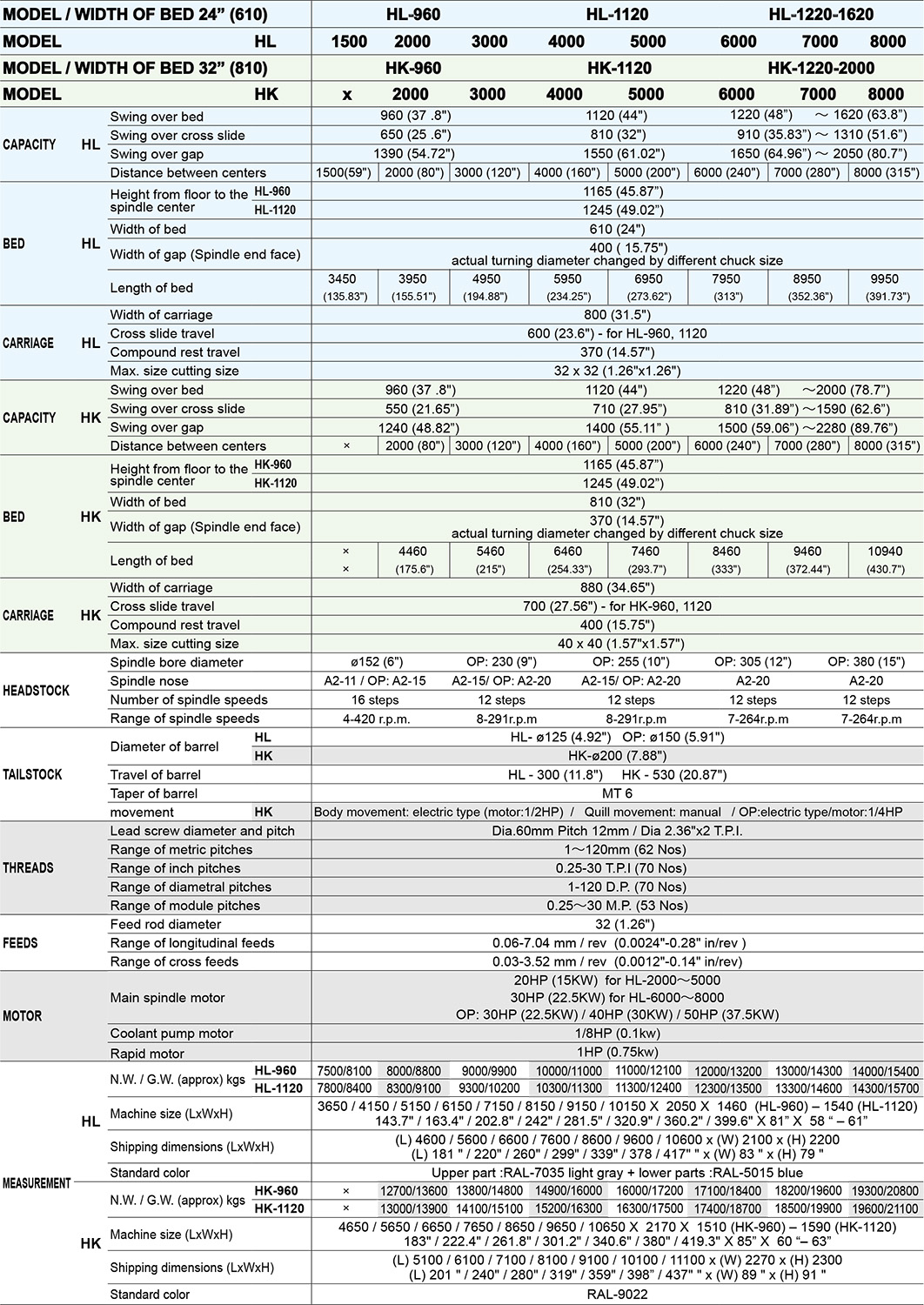

SPECIFICATION
Spindle bore 9",10",12",15" only fit to swing over bed over 1120mm. Unit: mm / inch
- We reserve the right to modify and improve our products without notice.
- Welcome to check with us for other specification and special purpose of functions, which is accepted to be customized.

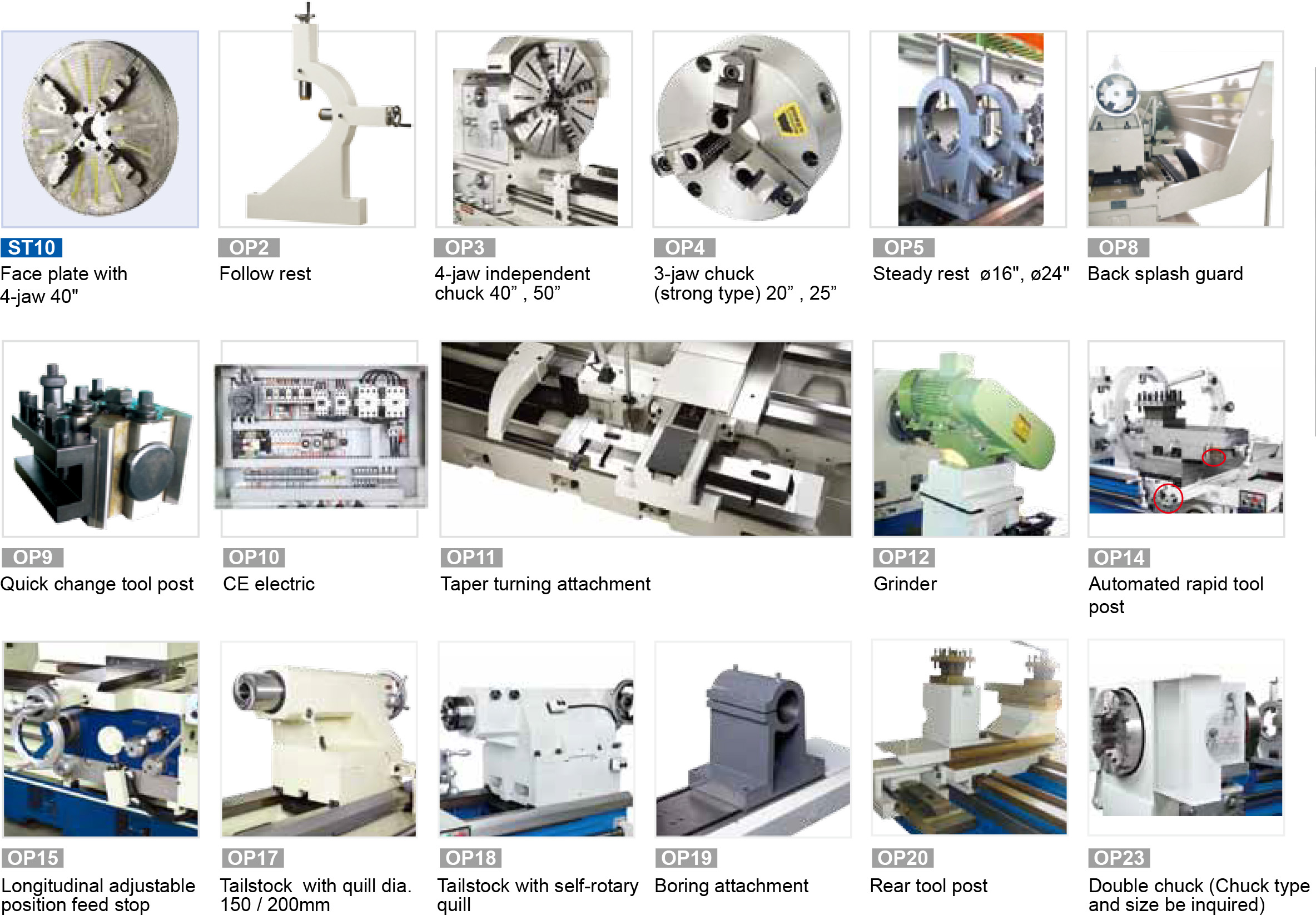

ACCESSORIES
